V6 Anti-Roll 3D Touch Probe – Precision CNC Edge Finder & Center Finder, Compatible With Mach3 & GRBL, 0.01mm Repeatability, 5-24V DC

About This Product

If you're running a CNC router or mill, this V6 3D touch probe is a serious upgrade for your workflow.

It lets you quickly find edges, centers, and even measure table shapes without guessing or using those old-school edge finders that take forever.

It connects to the signal input port on your Mach3 or GRBL controller and works like a charm.

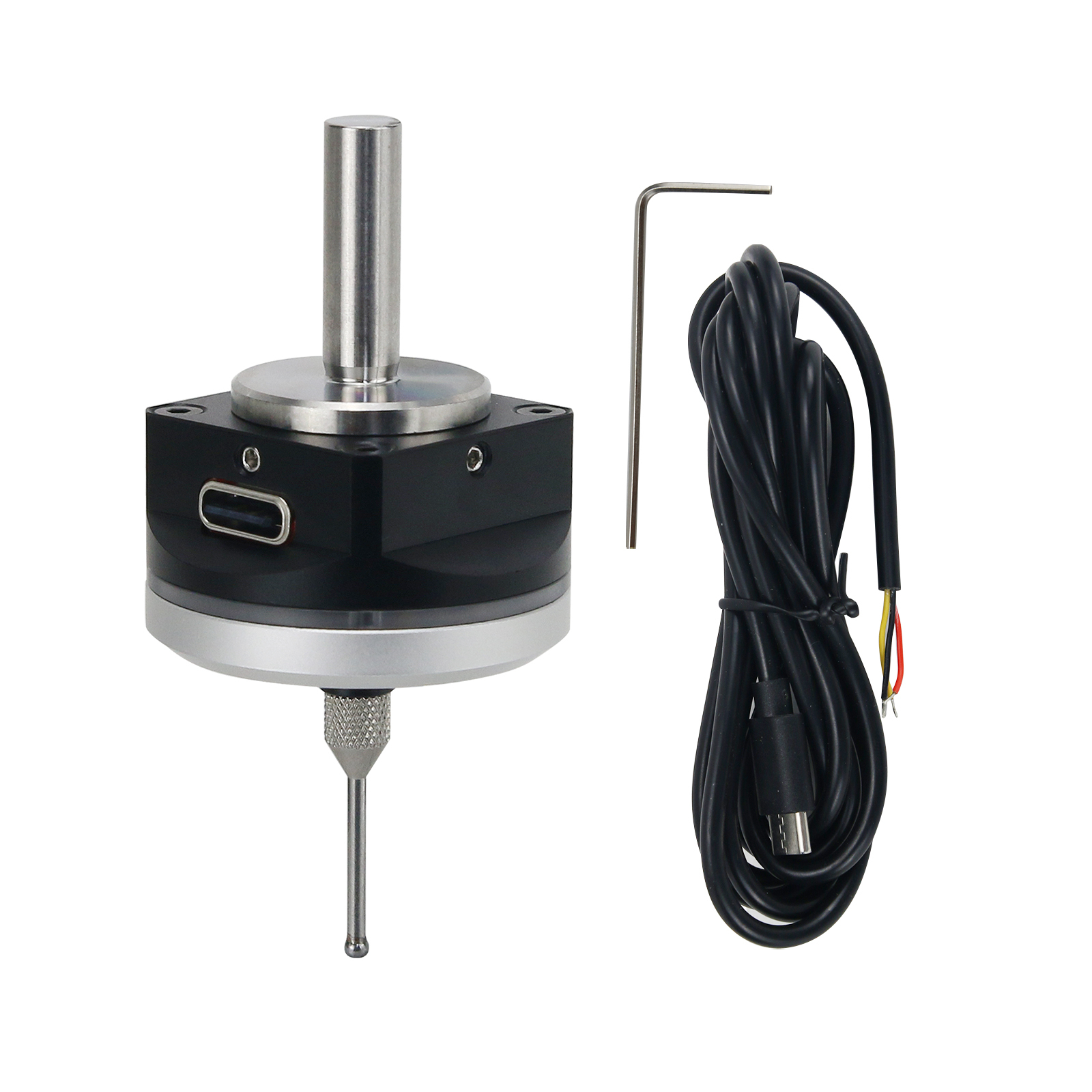

The probe has a flat anti-roll design – so it won't roll off your bench – and the body is machined from black and silver anodized aluminum.

The stylus is stainless steel with a tungsten steel ball tip, which resists wear and gives you accurate, repeatable results.

One-way repeatability is less than 0.

01mm, so you can trust your measurements.

The stylus has a stroke of ±4mm in the XY plane and 2mm in the Z direction, and the trigger life is rated at over 3 million triggers – built to last.

It uses a three-wire NPN-NO setup: red for VCC (5-24V DC), yellow for signal output, and black for ground.
The cable is 2 meters long, giving you plenty of reach.
It's shipped with concentricity fine-tuned to within 0.

05mm, but you can adjust it further if needed.

Just make sure you're using a high-quality ER11 collet (AAA grade or better) to keep that concentricity solid.
A game-changer for CNC precision work.
