AIHJCNELE 4-Pack MX1508 Dual Channel H-Bridge DC Stepper Motor Driver Module – 1.5A, 2V-10V, PWM Speed Control For Smart Car & Robot Projects

About This Product

If you're into building robots, smart cars, or any kind of battery-powered gadget, this MX1508 motor driver module is a great little component.

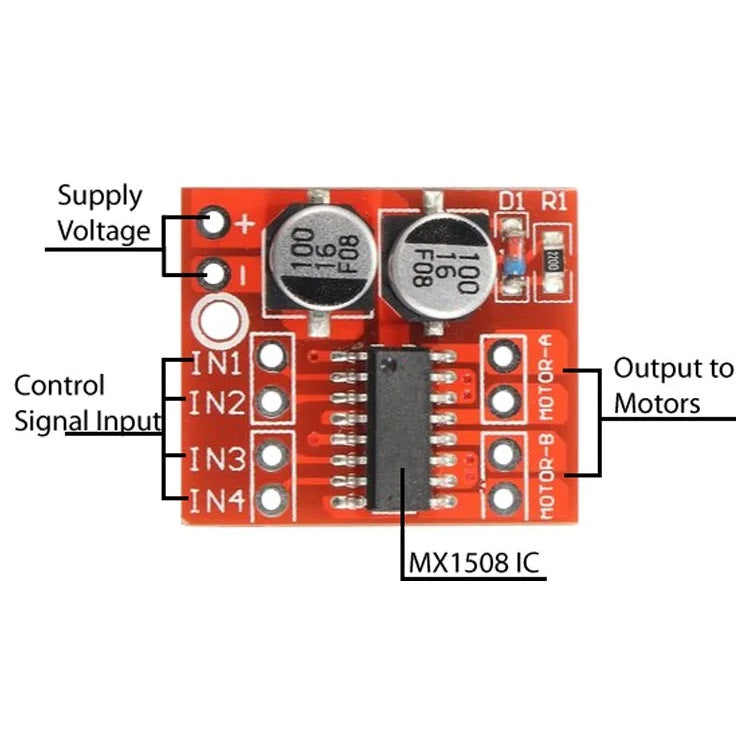

You get four modules in one pack – each one is a dual-channel H-bridge that can drive two DC motors or one 4-wire 2-phase stepper motor.

Supply voltage is DC 2V to 10V, and it handles 1.
5A continuous current per channel, with peaks up to 2.
5A.

What's cool about this chip is that it uses MOSFETs instead of transistors – so it runs cooler and more efficiently than older L298N modules.
No heatsink needed, and it's tiny – only 24.

7 x 21 x 5mm.
It's got built-in thermal protection, so if the motor stalls or overheats, the chip shuts down and automatically recovers when it cools.
Standby current is less than 0.

1uA, which is basically nothing – perfect for battery life.

Input signals are 1.
8V to 7V, so it works with most microcontrollers like Arduino or ESP.

The module also has a built-in common conduction circuit – if you leave the input pins floating, the motor won't accidentally run.
Just be careful with wiring – reverse polarity or shorting outputs can fry it.
This is a precision product, so some electronic knowledge is helpful.

But if you know your way around a breadboard, this is a solid deal for four drivers.
